Quick Details

  • Condition: New
  • Application: Woodworking
  • Automatic Grade: Manual
  • Motor Speed: 1400 RPM
  • Max Processing Width: 6-26 mm
  • Max Processing Thickness: 76 mm
  • Drill Diameter: 3-16 mm
  • Place of Origin: China (Mainland)
  • Brand Name: TTMC Heavy duty wood mortiser
  • Model Number: MS3840
  • Voltage: 220V-380V, optional
  • Power(W): 750 W
  • Dimension(L*W*H): 560x480x820 mm
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item No: 575117 TTMC Heavy duty wood mortiser
  • Chisel capacity mm: 6-26 mm
  • Chisel capacity inch: 1/4"-1"
  • Max. mortising depth mm: 76 mm
  • Max. mortising depth inch: 3 "
  • Max. chisel travel: 210 mm
  • Over height: 1700 mm
  • Drill chuck capacity: 3-16 mm
  • Net weight: 80 kg
  • Color: Blue, optional

Packaging & Delivery

Packaging Details: Ply wood case for TTMC Heavy duty wood mortiser
Delivery Detail: around 55 days after confirmation
Product information

Features:

1. Stable performance
2. Easy operation and low maintenance

Specification:

Item No.
575117
Model
MS3840
Chisel capacity
6-26mm(1/4″-1″)
Max. Mortising Depth
76mm
Drill Chuck Capacity
3-16mm
Travel in Front and Behind
145mm
Travel in Left and Right
320mm
Max. Chisel Travel
210mm
Over Height
1700mm
Motor Power
750w
Spindle Speed
1400(50Hz) / 1720(60Hz)rpm
Spindle to Fence (max.)
140mm
Table size
400×150mm
Packing Size (Machine)
56×48×82cm
Packing Size (Stand)
50×40×63cm
G.W./N.W.( Machine)
101/80kgs
G.W./N.W.( Stand)
18/16kgs

Accessories:

Standard accessories:
N
Optional accessories:
N

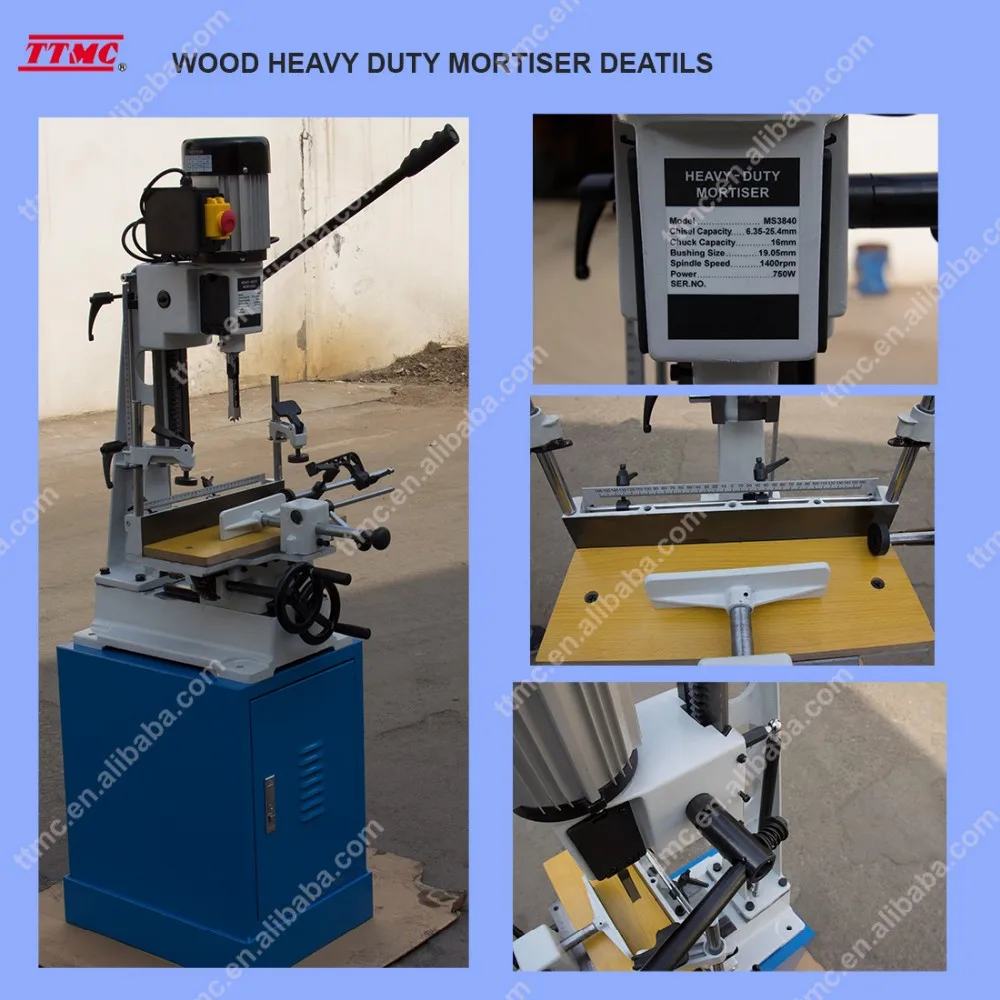

Detailed Images
Packing & Delivery

Ply wood case packing and Seaworthy export packing


Notice: If delivery by Express,
Most time there is no import tax need to paid when delivery arrive to destination.
But some times part country's customs will charge for import tax.
If the import tax is required by customs, it should be paid by buyer.
Because the prices just include customs clearance cost in China, not include import tax !!!

Our Service

Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
