Quick Details

  • Condition: New

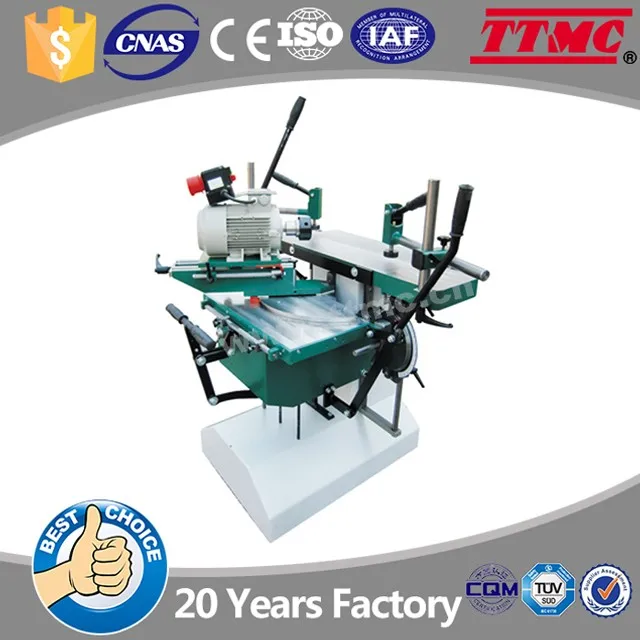

  • Type: SLOT wood boring machine
  • CNC or Not: Normal
  • Automatic Grade: Manual
  • Place of Origin: China (Mainland)
  • Brand Name: TTMC wood boring machine
  • Model Number: MGX20G
  • Voltage: 220v-400V, optional
  • Power(W): 1500/1900 W
  • Dimension(L*W*H): 1060x880x1330 mm
  • Weight: 240 kg
  • Certification: CE ISO
  • After-sales Service Provided: Overseas third-party support available
  • Item No: 575002 TTMC wood boring machine
  • Table size: 595x316 mm
  • Cross travel: 215 mm
  • Longitudinal travel: 260 mm
  • Vertical stroke: 145 mm
  • Drill chuck size: 20 mm
  • Speed: 1400/2800 rpm
  • Packing size: 106x88x133 cm
  • Gross weight: 285 kg
  • Color: Blue, optional

Packaging & Delivery

Packaging Details: Ply wood case for TTMC wood boring machine
Delivery Detail: around 45 days after confirmation
Product information

Features:

1. The motor table is moved, the work piece table is fixed, thus large work pieces like doors etc. can be worked on without problems
2. The quick lifting system makes works easier, faster, more effective and more universal. The lifting unit can be moved very easily and with exact precision due to a guide system with ball bearings which is supported by a gas spring.
3. The lifting unit can be locked at any position and if necessary, be adjusted most exactly through a fine-adjusting device, So the vertical stroke way can be used for working like cross and depth stroke.
4. Head swivel angel: ±60°

Specification:

Item No.
575002
Model
MGX20R
Table size
595X316 mm
Cross travel
215 mm
Longitudinal travel
260 mm
Vertical stroke
145 mm
Drill chuck size
20 mm
Speed
1400/2800 rpm
Motor
1.5/1.9 kW
Packing size
106x88x133 cm
G.W./N.W.
285/240 kg

Accessories:

Standard accessories:
N
Optional accessories:
N

Detailed Images
Packing & Delivery

Ply wood case packing and Seaworthy export packing


Notice: If delivery by Express,
Most time there is no import tax need to paid when delivery arrive to destination.
But some times part country's customs will charge for import tax.
If the import tax is required by customs, it should be paid by buyer.
Because the prices just include customs clearance cost in China, not include import tax !!!

Our Service

Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
