Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC wood lathe
  • Model Number: TL-406
  • Voltage: 110V-400V, optional
  • Power(W): 370w
  • Weight: 40 kg
  • Dimension(L*W*H): 860x460x290 mm
  • Certification: CE ISO9001
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item No.: 572001 TTMC wood lathe
  • Swing over bed: 305 mm
  • Swing over tool rest base: 241 mm
  • Working distance between centers: 406 mm
  • Number of speeds: 6
  • Spindle nose: 25mm x8
  • Headstock Taper: MT2
  • Tailstock Taper: MT2
  • Ram Travel: 63mm
  • Color: Blue, optional

Packaging & Delivery

Packaging Details Carton box for TTMC wood lathe
Delivery Time about 45 days after confirmation
Product information

Features:

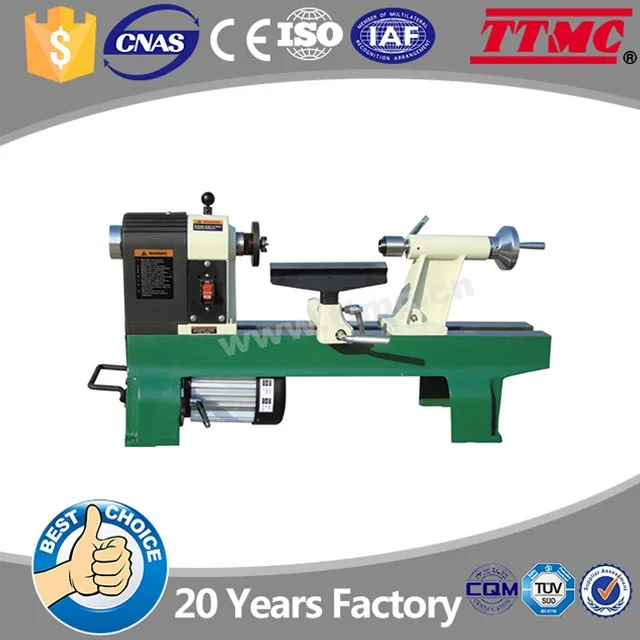

1. The wood lathe TL-406 conducts coarse and precision turning on end surfaces, sections, conical surfaces of wood.
2. It is the largest mini-type machine in the industry.
3. The wood lathe can use the shaped tool for quick and high-precision processing.
4. It has a motor control system to facilitate the operation.
5. The wood lathe can be combined with an extended operating platform to satisfy the demand of a large-dimension work piece.
6. 305mm swing/406mm between centers: Largest mini lathe in the industry. This increased capacity lets you do more while occupying less space.
7. 12 position index head: Allows accurate pattern work to be performed on projects such as fluting, grooving, drilling and layout. It will also lock the spindle for accessory removal.
8. Easy Access speed change: Provides ample room to change speeds quickly
9. Nylon face plate washer: Prevents accessories from sticking to the spindle; for easy removal
10. Self Ejecting tail stock: No need to use the knock-out bar to remove the center
11. Convenient handle: Flip up handle makes mobility comfortable
12. Tool holder: Store your live center, spur center and knockout bars for quick and easy access

Specification:

Item No.
282005
Model
MW1432B
Motor
Horsepower
0.37kW/0.5HP
Amps
6.6A
Swing
Swing over bed
305mm
Swing over tool rest base
241mm
Working distance between centers
406mm
Speeds
Number of speeds
6
Range(m/min)
131,246,375,552,814,1188
Headstock/Tailstock
Spindle nose in x TPI
25mm x 8
Headstock taper
MT-2
Tailstock taper
MT-2
Ram Travel
63mm
Overall
Height
813 mm
Width
267 mm
Depth
483 mm
Net weight
40 kg
Packing size
86x46x29 cm

Accessories:

Standard accessories:
N
Optional accessories:
Stand
Extension Bed
Stand extension

Detailed Images
Packing & Delivery

Carton box packing and Seaworthy export packing


Notice: If delivery by Express,
Most time there is no import tax need to paid when delivery arrive to destination.
But some times part country's customs will charge for import tax.
If the import tax is required by customs, it should be paid by buyer.
Because the prices just include customs clearance cost in China, not include import tax !!!

Our Service

Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
