Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 26-320 rpm
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC Vertical Drilling Machine
  • Model Number: Z51100
  • Voltage: 220V-415V, optional
  • Power(W): 7500 W
  • Dimension(L*W*H): 1465x970x3170 mm
  • Weight: 3500 kg
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item No.: 221044 TTMC Vertical Drilling Machine
  • Max. Drilling dia.: 100 mm
  • Max. feeding resistance: 45000 N
  • Spindle taper: MT6
  • Spindle travel: 310 mm
  • Spindle head travel: 300 mm
  • Feeding speed: 0.096-0.717
  • Worktable travel: 300 mm
  • Table size: 760x650 mm
  • Flow of cooling pump: 25 L/min

Packaging & Delivery

Packaging Details Ply wood case for TTMC Vertical Drilling Machine
Delivery Time Shipped in 45 days after payment

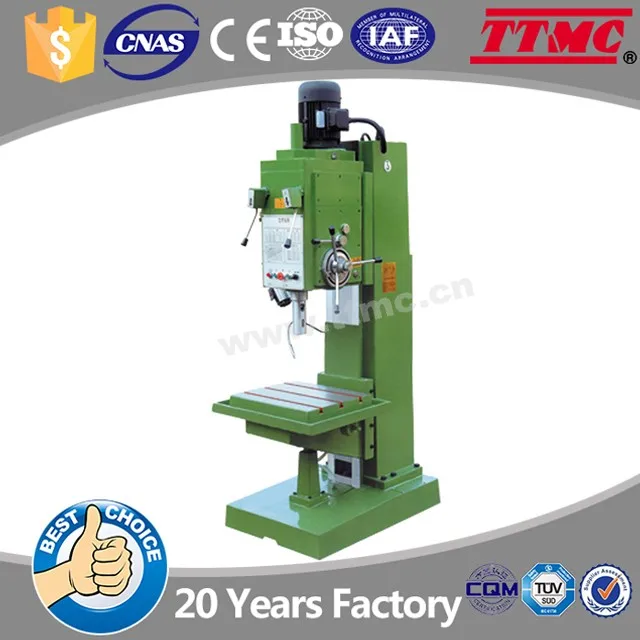

Product information


1. The box-type vertical drilling machine series can complete the processing of drilling, boring, reaming, countersinking, tapping and etc.
2. There are high precision, good rigidity, strong torque, low noise and wide range of speed adjustment features, etc.
3. The machine has a automatic tapping reverse structure, the principal axis tapping can automatically reverse clockwise, and it is quite convenient for taping in dead hole and deep hole.


Item No.
Max. drilling dia. (cast iron)
100 mm
Max. feeding resistance
45000 N
Max. allowed spindle torque
1150 N.m
Spindle tapper
Distance between spindle center and guide way surface
480 mm
Spindle travel
310 mm
Spindle head travel
300 mm
Spindle speed
26-320 r/min 6 steps
Feeding speed
0.096-0.717 6steps
Worktable travel
300 mm
Worktable size
760x650 mm
Max. distance between spindle and worktable surface
850 mm
Main motor
7.5 kW
Flow of cooling pump
25 L/min
Overall dimension
1465x970x3170 mm
Machine weight
3500 kg


Standard accessories:
1. Working light
Optional accessories:

Detailed Images
Packing & Delivery

Ply wood case packing and Seaworthy export packing

Notice: If delivery by Express,
Most time there is no import tax need to paid when delivery arrive to destination.
But some times part country's customs will charge for import tax.
If the import tax is required by customs, it should be paid by buyer.
Because the prices just include customs clearance cost in China, not include import tax !!!

Our Service

Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
