Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 38-910 r/min
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC china radial drilling machine
  • Model Number: Z3050X13
  • Voltage: 220V-415V, optional
  • Power(W): 3000 W
  • Dimension(L*W*H): 2080x820x2320 mm
  • Weight: 2300 kg
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item No.: 241008 TTMC china radial drilling machine
  • Max. Drilling dia.: 50 mm
  • Distance between spindle axis and column: 335-1300 mm
  • Distance of headstock movement: 960 mm
  • Spindle travel: 260 mm
  • Spindle taper: MT5
  • Rocker arm lifting speed: 1.3 m/min
  • Rocker swing angle: ±180°
  • Elevating motor power: 0.75 kW
  • Color: Blue, optional

Packaging & Delivery

Packaging Details: Ply wood case for TTMC china radial drilling machine
Delivery Detail: Shipped in 45 days after payment
Product information

Features:

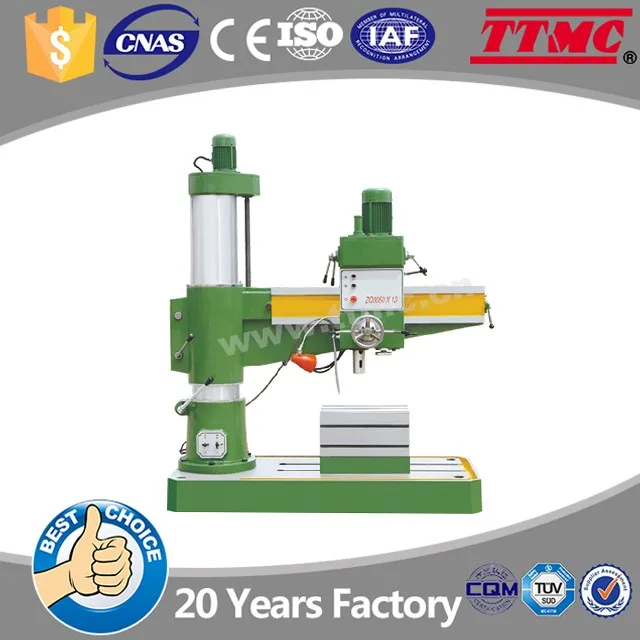

1. Radial Drilling machine
2. Can process large and heavy workpiece
3. Mechanical transmission.
4. Mechanical clamping.
5. Automatic arm lifting.
6. Automatic feed.
7. Spindle with limited micro switch

Specification:

Item No.
241008
Model
Z3050x13
Max. drilling diameter
ø50 mm
Column diameter
300 mm
Distance between spindle axis and column
335-1300 mm
Distance of headstock horizontal movement
960 mm
Distance between spindle nose and working surface of base
280-1170 mm
Rocker arm lifting distance
630 mm
Spindle travel
260 mm
Spindle taper
MT 5
Range of spindle speeds (6 steps)
38,100,182,225,450,910 r/min
Range of spindle feeds (3 steps)
0.10, 0.16, 0.25 mm/r
Max. permissible feed pressure of spindle
6300 N
Rocker arm lifting speed
1.3 m/min
Rocker swing angle
±180°
Spindle motor power
3 kW
Elevating motor power
0.75 kW
Cooling pump motor power
0.04 kW
Machine weight
2300 kg
Overall dimension
2080x820x2320 mm

Accessories:

Standard accessories:
Working light
Cooling system
Optional accessories:
N

Detailed Images
Packing & Delivery

Ply wood case packing and Seaworthy export packing


Notice: If delivery by Express,
Most time there is no import tax need to paid when delivery arrive to destination.
But some times part country's customs will charge for import tax.
If the import tax is required by customs, it should be paid by buyer.
Because the prices just include customs clearance cost in China, not include import tax !!!

Our Service

Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
