Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 25-2000 r/min
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC Hydraulic Radial Drilling machine
  • Model Number: Z3050X20/1
  • Voltage: 220V-415V, optional
  • Power(W): 4000 W
  • Dimension(L*W*H): 2830x1100x2840 mm
  • Weight: 4000 kg
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item No.: 241003 TTMC Hydraulic Radial Drilling machine
  • Max. Drilling dia.: 50 mm
  • Column diameter: 350 mm
  • Distance between spindle axis and column: 350-2000 mm
  • Rocker arm lifting distance: 580 mm
  • Spindle travel: 315 mm
  • Spindle taper: MT5
  • Range of spindle feeds: 0.04-3.20 r/mn
  • Rocker arm lifting speed: 0.02 m/s
  • Rocker swing angle: ±180°

Packaging & Delivery

Packaging Details: Ply wood case for TTMC Hydraulic Radial Drilling machine
Delivery Detail: Shipped in 45 days after payment
Product information

Features:

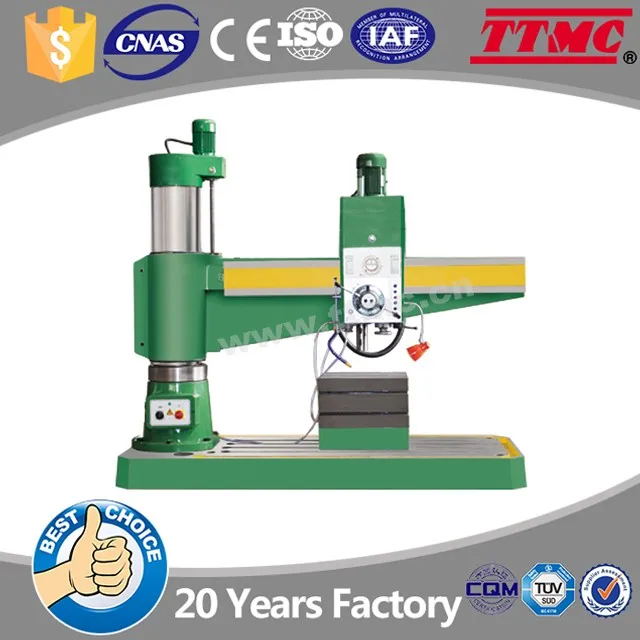

1. Hydraulic Radial Drilling machine
2. Can process large and heavy workpiece
3. Hydraulic clamping
4. Hydraulic transmission
5. Hydraulic preselection
6. Electrical machinery double protection


Specification:

Item No.
241003
Model
Z3050x20/1
Max. drilling dia.
50 mm
Column dia.
350 mm
Distance between spindle axis and column
350-2000 mm
Distance of headstock horizontal movement
1650 mm
Distance between spindle nose and working surface of base
320-1220 mm
Rocker arm lifting distance
580 mm
Spindle travel
315 mm
Spindle taper
MT 5
Range of spindle speeds
25-2000 rpm
Range of spindle feeds
0.04-3.20 rpm
Max. Permissible feed pressure of spindle
18000N
Max. Permissible torque of spindle
500 N.m
Rocker arm lifting speed
0.02 m/s
Rocker swing angle
±180°
Dial rotates the drilling depth
122 mm
Spindle motor power
4 kW
Arm elevating motor power
1.5 kW
Hydraulic clamping motor power
0.75 kW
Cooling pump motor power
0.09 kW
Machine weight
4000 kg
Overall dimension (L x W x H)
2830x1100x2840 mm

Accessories:

Standard accessories:
Working light
Cooling system
Optional accessories:
N

Detailed Images
Packing & Delivery

Ply wood case packing and Seaworthy export packing


Notice: If delivery by Express,
Most time there is no import tax need to paid when delivery arrive to destination.
But some times part country's customs will charge for import tax.
If the import tax is required by customs, it should be paid by buyer.
Because the prices just include customs clearance cost in China, not include import tax !!!

Our Service

Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
