Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 25-2000 rpm
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC Hydraulic Radial Drilling machine
  • Model Number: Z3050X16/1
  • Voltage: 220V-415V, optional
  • Power(W): 4000 W
  • Dimension(L*W*H): 2500x1070x2840 mm
  • Weight: 3500 kg
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item No.: 241004 TTMC Hydraulic Radial Drilling machine
  • Max. Drilling dia.: 50 mm
  • Distance between spindle axis and column: 350-1600 mm
  • Spindle travel: 315 mm
  • Spindle taper: MT5
  • Number of spindle speeds: 16 step
  • Range of spindle feeds: 0.04-3.20 mm/r
  • Number of spindle feeds: 16 step
  • Table size: 630x500 mm
  • Color: Blue, optional

Packaging & Delivery

Packaging Details: Ply wood case for TTMC Hydraulic Radial Drilling machine
Delivery Detail: Shipped in 45 days after payment
Product information

Features:

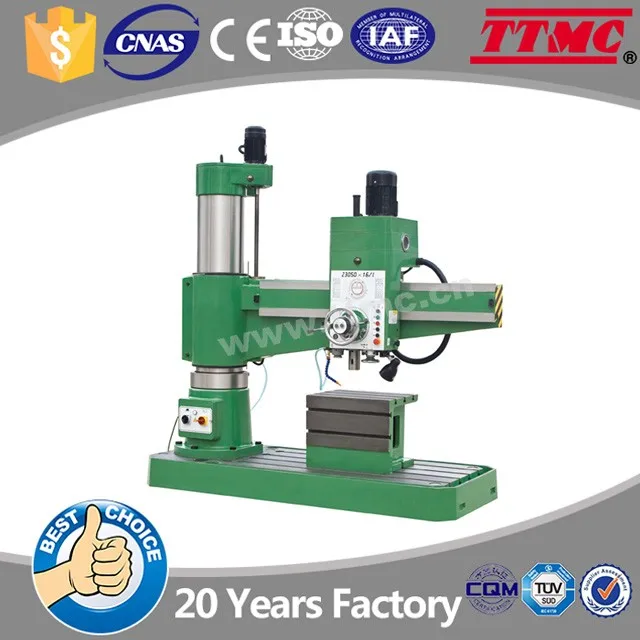

1. Hydraulic Radial Drilling machine
2. Can process large and heavy workpiece
3. Adopt mechanical transmission, mechanical clamping, easy operation
4. With low rotating speed, long travel, good steel capacity and wide working rouge
5. With confident construction high precision

Specification:

Item No.
241004
Model
Z3050x16/1
Max. drilling dia.
ø50 mm
Distance between spindle axis and column
350-1600 mm
Distance between spindle nose and working surface of base
320-1220 mm
Spindle travel
315 mm
Spindle taper
MT 5
Range of spindle speeds
25-2000 rpm
No. of spindle speeds
16 step
Range of spindle feeds
0.04-3.20 mm/r
No. of spindle feeds
16 step
Table size
630x500 mm
Distance of headstock horizontal movement
1250 mm
Spindle motor power
4 kW
Machine weight
3500kg
Overall dimension
2500x1070x2840mm

Accessories:

Standard accessories:
Working light
Cooling system
Optional accessories:
N

Detailed Images
Packing & Delivery

Ply wood case packing and Seaworthy export packing


Notice: If delivery by Express,
Most time there is no import tax need to paid when delivery arrive to destination.
But some times part country's customs will charge for import tax.
If the import tax is required by customs, it should be paid by buyer.
Because the prices just include customs clearance cost in China, not include import tax !!!

Our Service

Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
