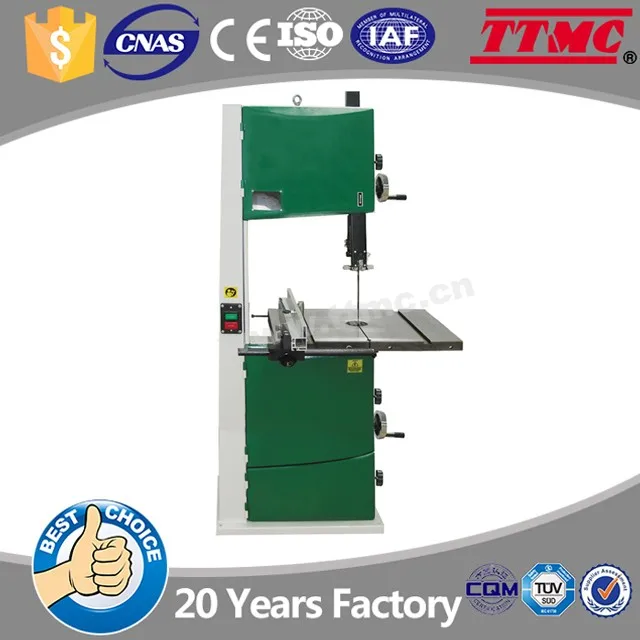

TBS457 TTMC 18" horizontal wood cutting band saw

FOB Reference Price:Get Latest Price
1 Set/Sets Sample of wood cutting bandsaw can be apply (Min. Order)
Supply Ability:
600 Set/Sets per Month Wood cutting bandsaw can produce as soon as confirm
Port:
Qingdao or Shanghai port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Band Saw
Use:
Woodworking
Style:
Vertical
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TTMC wood cutting bandsaw
Model Number:
TBS-457
Usage:
cutting wood
Voltage:
220v-415V, optional
Power(W):
2200
Dimension(L*W*H):
201x60x103cm
Weight:
176 kgs
Certification:
CE; ISO
Warranty:
12 months, 12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Item No.:
571007
Capicity cutting height:
305mm
Capicity cutting width:
467mm
Blade length:
3607 mm
Blade width:
6-32 mm
Table Size:
533x483mm
Height to flloor:
959mm
Speed Range:
460/980 m/min
Lead time:
35 days
Packaging & Delivery
Packaging Details
Ply wood case
Delivery Time
55 days
Product Description

Features:

1. The precision wood cutting band saw is a vertical type
2. 305mm Re-Saw capacity: Largest re-saw capacity for slicing veneers, book matched projects and lumber sizing.
3. Quick release blade tension:Quickly release the blade tension when changing blades or when machine is off, increasing blade life
4. 533x483mm Large work surface: Support for your large workpieces.
5. Edge facing thrust bearings: Extends blade life and improves stability
6. 2 Speeds 460/980 m/min: Allows cutting of non-ferrous materials
7. Double Bearing blade guides: Adds stability and reduces friction for longer blade life
8. 90mm dust port: Attach your dust collection system for a cleaner work environment
9. Tire cleaning brush: Decrease saw dust build up on wheels
10. Quick release fence with drift adjustment: Blade drift in your workpiece can be easily adjusted; includes re-saw bar.


Specification:

Item No.
571007
Model
TBS-457
Cutting capacity Height
305 mm
Cutting capacity Width
467 mm
Blade Width
6-32mm
Blade Length
3607 mm
Table Size
533x483 mm
Table Left tilt
10°
Table Right tilt
45°
Table Groove “T” slot
(2)10x19 mm
Table Height to floor
959 mm
Motor Amps
11A
Motor Horsepower
2.2kW/3HP
Motor Speed capacity
2
Motor Speed range
460/980 m/min
Overall Height
1930 mm
Overall Width
969 mm
Overall Depth
694 mm
Overall Net weight
176 kg
Overall Packing size
201x60x103 cm

Accessories:

Standard accessories:
No.
Optional accessories:
T slot Miter Gauge
Table Inserts

Note:

 Specifications is for your reference. Owing to our continuous improvement of the machine,  any changes of the machines and parts may be made without obligation on notice / should not be advised separately. Please check with us before order if there are strict requirements for the parameters.
