Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 6 steps 108,162,262,398,665,1000r/min
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC Radial Drilling Machine
  • Model Number: ZQ3032Ax10
  • Voltage: 220V-415V,optional
  • Power(W): 1500/2200
  • Dimension(L*W*H): 140x60x206mm
  • Weight: 1080 kg
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Item No.: 241017 Radial Drilling Machine
  • Max. drilling dia.: 32mm
  • Spindle travel: 120mm
  • Spindle taper: MT4
  • Range of spindle speeds: 108,162,262,398,665,1000r/min
  • Range of spindle feeds: 0.1,0.16,0.25mm/r
  • Rocker arm lifting speed: 1.21m/min
  • Rocker swing angle: ±180°
  • Rocker arm lifting distance: 730mm
  • Column dia.: 200mm

Packaging & Delivery

Packaging Details Ply wood case for radial drilling machine

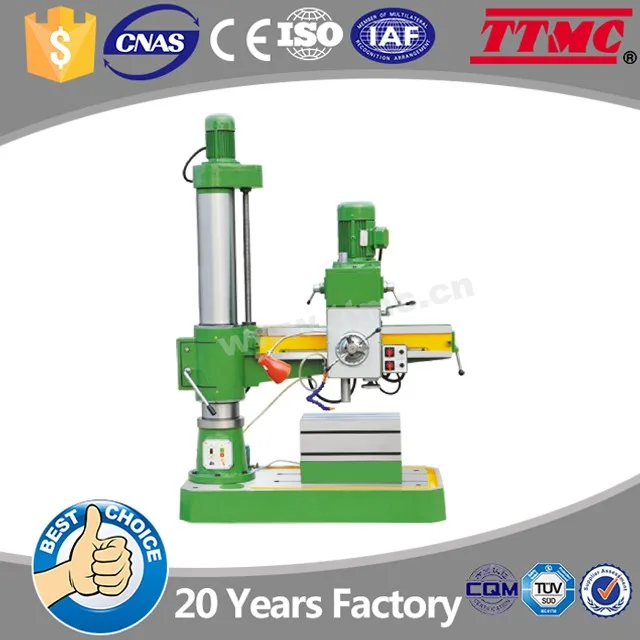

Radial Drilling Machine

ZQ3032AX10



Features



1. Radial drilling machine.



2. Mechanical transmission.



3. Mechanical clamping.



4. Automatic arm lifting.



5. Automatic feed.



6. With antistic good looking and its general arrangemnet is very harmonized.





Technical Specifications





Item No.241017
ModelZQ3032Ax10
Max. drilling diametersteel ø32 cast ø32
Colunu diameter200mm
Distance between spindle axis and column200-910mm
Distance of headstock horizontal movement710mm
Distance between spindle nose
and woring surface of base
330-1060mm
Rocker arm lifting distance730mm
Spindle travel120mm
Spindle taperMT4
Range of spindle speeds(6 steps)108,162,262,398,665,1000r/min
Range of spindle feeds (3 steps)0.10,0.16,0.25 mm/r
Max. permissible feed pressure of spindle5300 N
Rocker arm lifting speed1.21m/min
Rocker swing angle±180°
Spindle motor power1.5/2.2 kW
Elevating motor power0.55 kW
Cooling pump motor power0.04 kW
Machine weight1080 kg
Overall dimension1400x660x2060mm
