Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 3 steps
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC
  • Model Number: ZQ3035x10
  • Voltage: as customer request
  • Power(W): 0.75/2.2 kW
  • Dimension(L*W*H): 1530x700x2100 mm
  • Weight: 1100 kg
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Model: ZQ3035x10(241016)
  • Max. drilling dia.: 32mm in steel; 35mm in cast iron
  • Spindle travel: 190mm
  • Spindle tapper: MT4

Packaging & Delivery

Packaging Details Wooden case

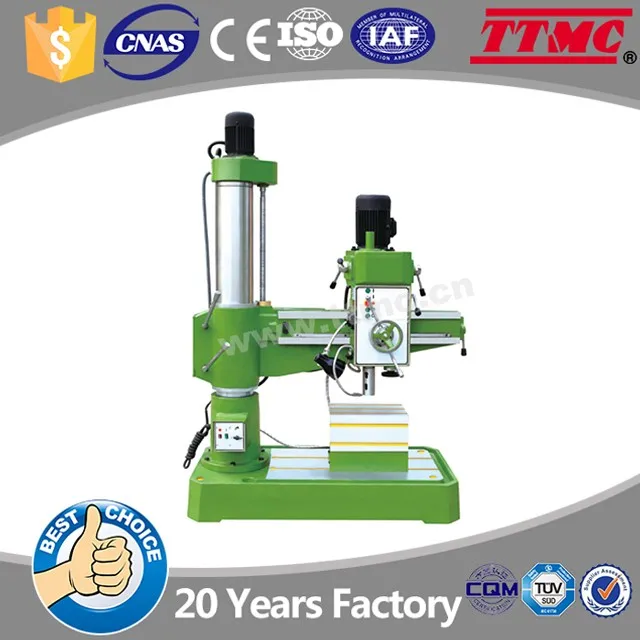

Radial Drilling Machine

ZQ3035x10



Features



1. Radial drilling machine.



2. Mechanical transmission.



3. Mechanical clamping.



4. Automatic arm lifting.



5. Automatic feed.



6. With antistic good looking and its general arrangemnet is very harmonized.





Technical Specifications





Item No.241016
ModelZQ3035x10
Max. drilling diametersteel ø32 cast ø35
Distance between spindle nose and table surface260-1000mm
Distance between spindle axis and column surface250-950mm
Spindle travel190mm
Spindle taperMT4
Spindle speed range75-1220rpm
Spindle speed step3 steps
Feeding speed0.10,0.15,0.25mm/r
Motor power2.2/0.75kW
Machine weight1100kg
Overall dimension1530x700x2100mm
