Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 12 steps
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC
  • Model Number: ZQ3040x12/I
  • Voltage: as customer request
  • Power(W): 2.2 kW
  • Dimension(L*W*H): 188x76x216 mm
  • Weight: 1660 kg
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Model: ZQ3040x12/I (241011)
  • Max.drilling diameter: 40mm
  • Rock swivel angle: ±180°
  • Spindle taper: MT 4
  • Spindle travel: 260mm
  • Motor power: 2.2 kW

Packaging & Delivery

Packaging Details: Wooden case

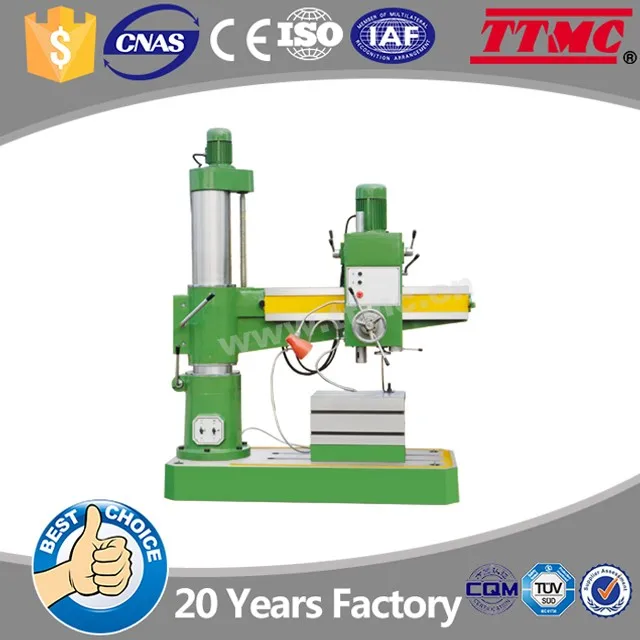

Radial Arm Drilling Machine

ZQ3040X12/I



Features



1. Radial drilling machine.



2. With antistic good looking and its general arrangemnet is very harmonized.



3. Mechanical transmission.



4. Mechanical clamping.



5. Automatic arm lifting.



6. Automatic feed.



7. Powerful double speed motor.





Technical Specifications





Item No.241011
ModelZ3040x12I
Max. drilling diameterø40mm
Colunu diameter240mm
Distance between spindle axis and column300-1200mm
Distance of headstock horizontal movement900mm
Distance between spindle nose
and woring surface of base
260-1150mm
Rocker arm lifting distance590mm
Spindle travel260mm
Spindle taperMT 4
Range of spindle speeds(6 steps)38,100,182,225,450,910 r/min
Range of spindle feeds (3 steps)0.10,0.16,0.25mm/r
Max. permissible feed pressure of spindle6300N
Rocker arm lifting speed1.3m/min
Rocker swing angle±180°
Spindle motor power2.2 kW
Elevating motor power0.55kW
Cooling pump motor power0.04kW
Machine weight(N.W.)1660kg
Overall dimension1880x760x2160mm
