Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 25-2000 r/min
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC Hydraulic Radial Drilling Machine
  • Model Number: Z3050x20/1
  • Voltage: as customer request
  • Power(W): 4 kW
  • Dimension(L*W*H): 2830X1100X2840mm
  • Weight: 4000kg, 4000kg
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Item No: 241001 Hydraulic Radial Drilling Machine
  • Model: Z3080X25
  • Max. drilling dia.: 50mm
  • Column dia.: 350mm
  • Spindle taper: MT5
  • Spindle travel: 315mm
  • Range of spindle speeds: 25-2000r/min
  • rocker arm lifting speed: 0.02m/s
  • Overall dimension: 2830x1100x2840mm

Packaging & Delivery

Packaging Details: Seaworthy export packing

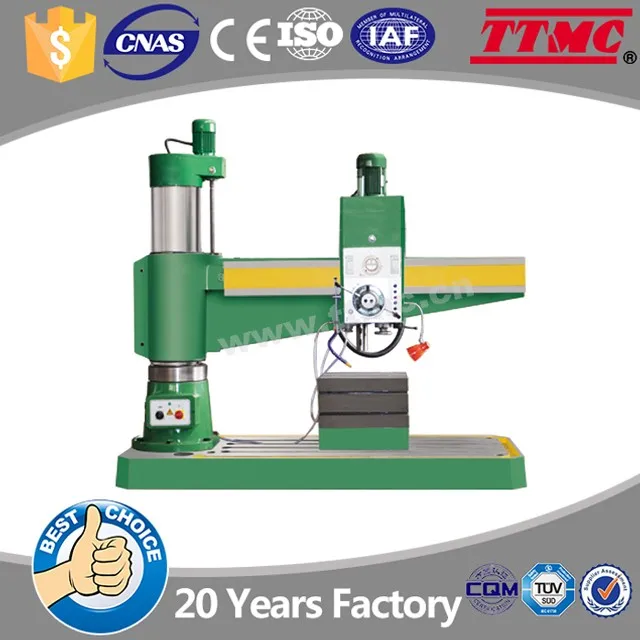

Hydraulic Radial Drilling Machine

Z3050X20/1



Features



1. Hydraulic clamping



2. Hydraulic transmission



3.Hydraulic preselection



4.Electrial machinery double protection





Technical Specifications



Item No.

241003

Model

Z3050x20/1

Max. drilling dia.

50 mm

Column dia.

350 mm

Distance between spindle axis and column

350-2000 mm

Distance of headstock horizontal movement

1650 mm

Distance between spindle nose and working surface of base

320-1220mm

Rocker arm lifting distance

580 mm

Spindle travel

315 mm

Spindle taper

MT 5

Range of spindle speeds

25-2000rpm

Range of spindle feeds

0.04-3.20 mm/r

Max. Permissible feedpressure of spindle

18000N

Max. Permissible torque of spindle

500 N.m

Rocker arm lifting speed

0.02 m/s

Rocker swing angle

±180º

Dial rotates the drilling depth

122mm

Spindle motor power

4kW

Arm elevating motor power

1.5 kW

Hydraulic clamping motor power

0.75 kW

Cooling pump motor power

0.09 kW

Machine weight

4000kg

Overall dimension (LxWxH)

2830x1100x2840mm
