Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 31.5-1400 rpm
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC
  • Model Number: Z5150B-1
  • Voltage: as customer request
  • Power(W): 3000
  • Dimension(L*W*H): 130x120x253cm
  • Weight: 1370 kg
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Model: Z5150B-1(390016)
  • Max. drilling dia.: 50mm
  • Spindle taper: MT5

Packaging & Delivery

Packaging Details Ply wood case

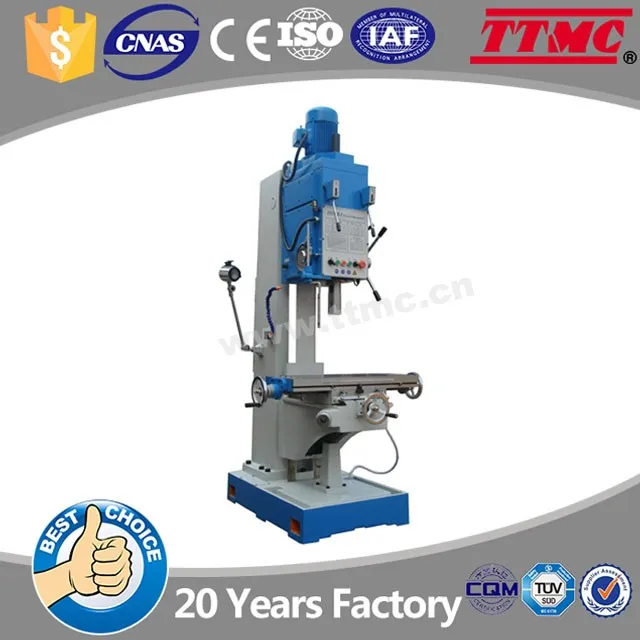

Vertical Drilling Machine






1.The vertical driller has crossed table.


2. The maximum processing capacity of the vertical drilling machine is 50MM.


3. Our vertical drilling machine Z5150B is of square column vertical type and features high-quality finished castings and stable performance.




Technical Specifications



Max drilling dia (mm)50
Spindle taper (mm)MT5
Spindle travel (mm)250
Spindle box travel by manual (mm) 200
Spindle speed steps (mm)12
Spindle speed range (mm)31.5-1400
Spindle feed steps (mm)9
Table size spindle feed range (mm)0.056-1.80
Table size (mm)800x320
Vertical travel (mm)300
Max distance between spindle and table (mm)750
Main motor power (k.W)3
Overall size (mm)1300x1200x2530
Net Weight (kg)1370
