Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 8 steps
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC
  • Model Number: T-40
  • Voltage: 220V or as request
  • Power(W): 2200
  • Dimension(L*W*H): 217*57*93cm
  • Weight: 310 KG
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Model: T-40(390004)
  • Morse taper: MT4
  • Motor power: 2.2 kW
  • Max. drilling dia.: 40mm
  • Spindle travel: 190mm
  • Tapping capacity: M18 in steel; M32 in cast iron

Packaging & Delivery

Packaging Details Ply wood case

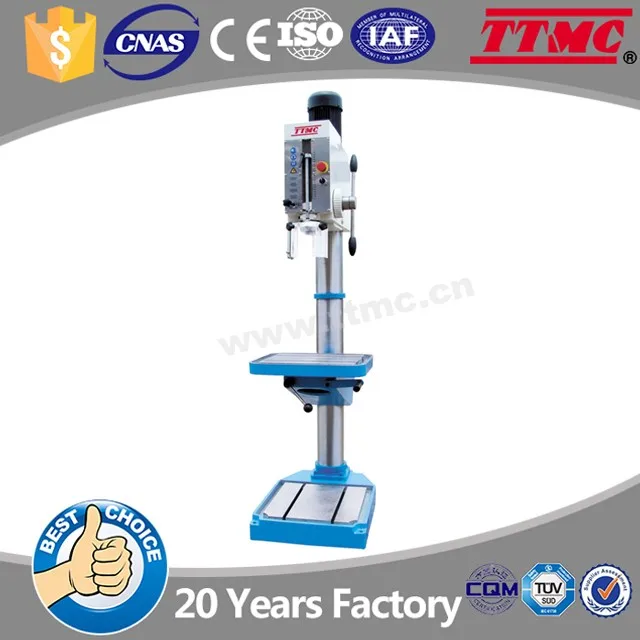

 Vertical Drilling Machine

T-40





Features



 1. Our vertical drilling machine features Danish design and European quality.



2. The powerful double-speed motor has eight rotating speeds and has a convenient tool retracting device.



3. The power-off shield protection of vertical drilling machine makes the work safer and efficient.



4. Our vertical drilling machine has a reversible tap whose depth can be automatically adjusted by a positioning device.



5. It is equipped with a height-adjustable transparent cover.



6. The drill chuck is interlocked.





 Technical Specifications





Item No.

390004

Model

T-40

Max.drilling dia.(mm)

40

Spindle travel(mm)

190

Tapping capacity in steel/cast iron

M18/M32

Morse taper

MT4

Motor power

2.2kW

Spindle speeds at 50Hz

90-135-200-300

440-670-980-1500

Spindle speeds at 60Hz

108-162-240-360-

528-805-1175-1800

Feed speed(mm/rev)

0.1-0.16-0.24-0.33

Packing size(cm)

217X57X93

N.W./G.W.

290/310kg
