Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 12 steps
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC
  • Model Number: ZQ3045x12
  • Voltage: as customer request
  • Power(W): 1500/2400
  • Dimension(L*W*H): 1800x760x2100 mm
  • Weight: 1800 kg
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Model: ZQ3045x12 (241010)
  • Max.drilling diameter: steel 38mm,cast 45mm
  • Rock swivel angle: ±180°
  • Spindle tapper: MT4

Packaging & Delivery

Packaging Details Wooden case

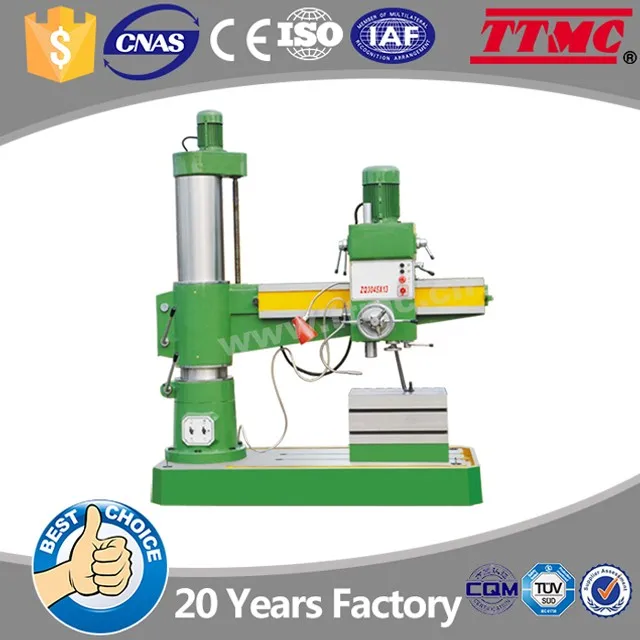

 TTMC Radial Arm Drilling Machine

ZQ3045X12



Features



1. Radial drilling machine.



2. With antistic good looking and its general arrangemnet is very harmonized.



3. Mechanical transmission.



4. Mechanical clamping.



5. Automatic arm lifting.



6. Automatic feed.



7. Powerful double speed motor.





Technical Specifications





Item No.241009241010
ModelZ3045x13Z3045x12
Max. drilling diametersteel ø38mm,cast ø45mmsteel ø38mm,cast ø45mm
Colunu diameter280mm240mm
Distance between spindle axis and column300-1300mm330-1200mm
Distance of headstock horizontal movement940mm840mm
Distance between spindle nose
and woring surface of base
250-1100mm260-1000mm
Rocker arm lifting distance670mm550mm
Spindle travel270mm270mm
Spindle taperMT 4MT 4
Range of spindle speeds(12 steps)36,65,120,190,330,610,75,
130,240,380,660,1220r/min
36,65,120,190,330,610,75,
130,240,380,660,1220r/min
Range of spindle feeds (3 steps)0.10,0.16,0.25mm/r0.10,0.16,0.25mm/r
Max. permissible feed pressure of spindle6300N6300N
Rocker arm lifting speed1.3m/min1.3m/min
Rocker swing angle±180°±180°
Spindle motor power1.5/2.4 kW1.5/2.4 kW
Elevating motor power0.55kW0.55kW
Cooling pump motor power0.04kW0.04kW
Machine weight1800kg1660kg
Overall dimension2000x800x2240mm1800x760x2100mm
