Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 40-570r/min, 9 steps
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC
  • Model Number: Z5180C
  • Voltage: 380V or as request
  • Power(W): 5500W
  • Dimension(L*W*H): 1460x970x2790mm
  • Weight: 2500 kg
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Model: Z5180C(221043)
  • Max. drilling dia.: 80mm
  • Spindle tapper: MT6
  • Spindle travel: 250mm
  • Table size: 650x550mm

Packaging & Delivery

Packaging Details Ply wood case

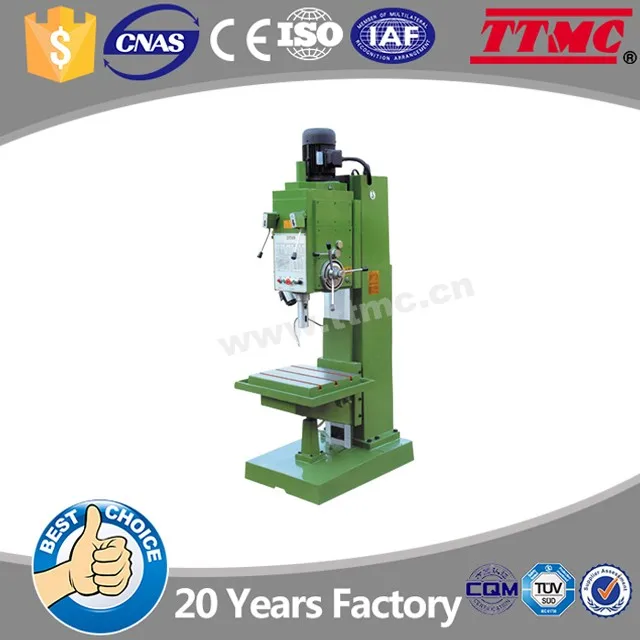

Features



1. The box-type vertical driiling machine series can complete the processing of driiling, boring, reaming, coutersing, tapping and etc.



2. There ari high precision, good rigidity, strong torque, low nois and wide range of speed adjustment features.



3. The machine has a automatic tapping reverse structure, the principal axis tapping can automatically reverse clockwise,and it is quite conveient for taping in dead hole and deep hole.







Technical Specifications



Item No.221042221043221044
ModelZ5163CZ5180CZ51100
Max. drilling dia(cast iron)63mm80mm100mm
Max. feeding resitance30000N30000N45000N
Max. allowed spindle torque800N.m801N.m1150N.m
Spindle tapperMT5MT6MT6
Distance between spindle center
and guide way surface
375mm375mm480mm
Spindle travel250mm250mm310mm
Spindle head travel250mm250mm300mm
Spindle speed40-570r/min 9 steps40-570r/min 9 steps26-320r/min 6steps
Feeding speed0.1-0.78 6 steps0.1-0.78 6 steps0.096-0.717 6steps
Worktable travel300mm300mm300mm
Worktable size650x550mm650x550mm760x650mm
Max. distance between spindle
and worktable surface
800mm800mm850mm
Main motor5.5kW5.5kW7.5kW
Flow of cooling pump25 L/min25 L/min25 L/min
Overall dimension1452x965x27871452x965x27871465x970x3170
Machine weight2500kg2500kg3500kg
