Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Drilling Speed: 8 steps
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TTMC
  • Model Number: Z3132x6
  • Voltage: as customer request
  • Power(W): 2/2.4KW
  • Dimension(L*W*H): 1600x680x1910mm
  • Weight: 1200 kg
  • Certification: CE
  • After-sales Service Provided: Overseas third-party support available
  • Model: Z3132x6(241019)
  • Max. drilling dia.: 32mm
  • Spindle tapper: MT4
  • Spindle speeds: 8 steps

Packaging & Delivery

Packaging Details: Wooden case

Features

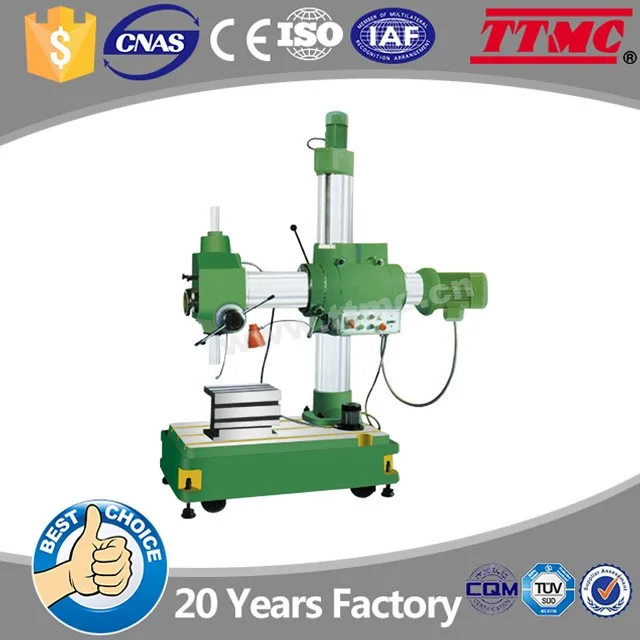

1. Radial drilling machine.



2. With antistic good looking and its general arrangemnet is very harmonized.



3. It can process large and heavy workpiece.



Technical Specifications





Item No.241019
ModelZ3132x6
Max.drilling diameter32mm
Distance between spindle axis and columnMax. 700mm, Mim, 345mm
Distance between spindle nose
and working surface of base
Max. 670mm, Min. 20mm
Taper of spindle holeMT4
Spindle travel160mm
Vertiacl center line around the
upright post roating angle
±180°
Vertiacl center line around the
rocker swing angle
±180°
Range of spindle speeds8 steps
Range of spindle feeds3 steps
Rocker arm lifting speed1.2m/min
Spindle motor power2.4/2kW
Elevating motor power0.55 kW
Cooling pump motor power0.04 kW
Overall dimension1600x680x1910mm
Machine weight1200 kg
